Descripción
Atención:
Este producto es traído para usted por shownpy, en modalidad de importación desde estados unidos, con un tiempo aproximado de entrega de 15 días.
Información del producto

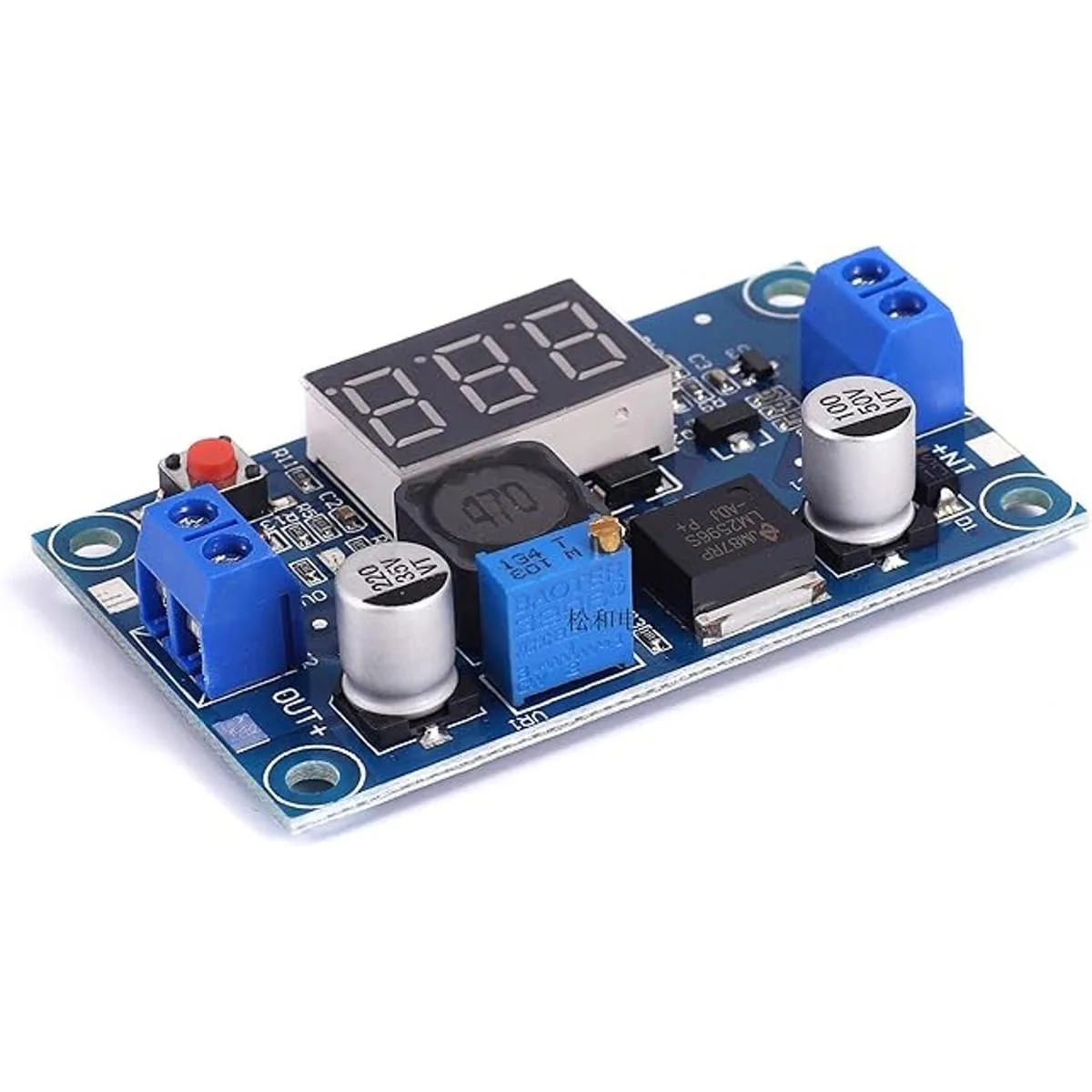

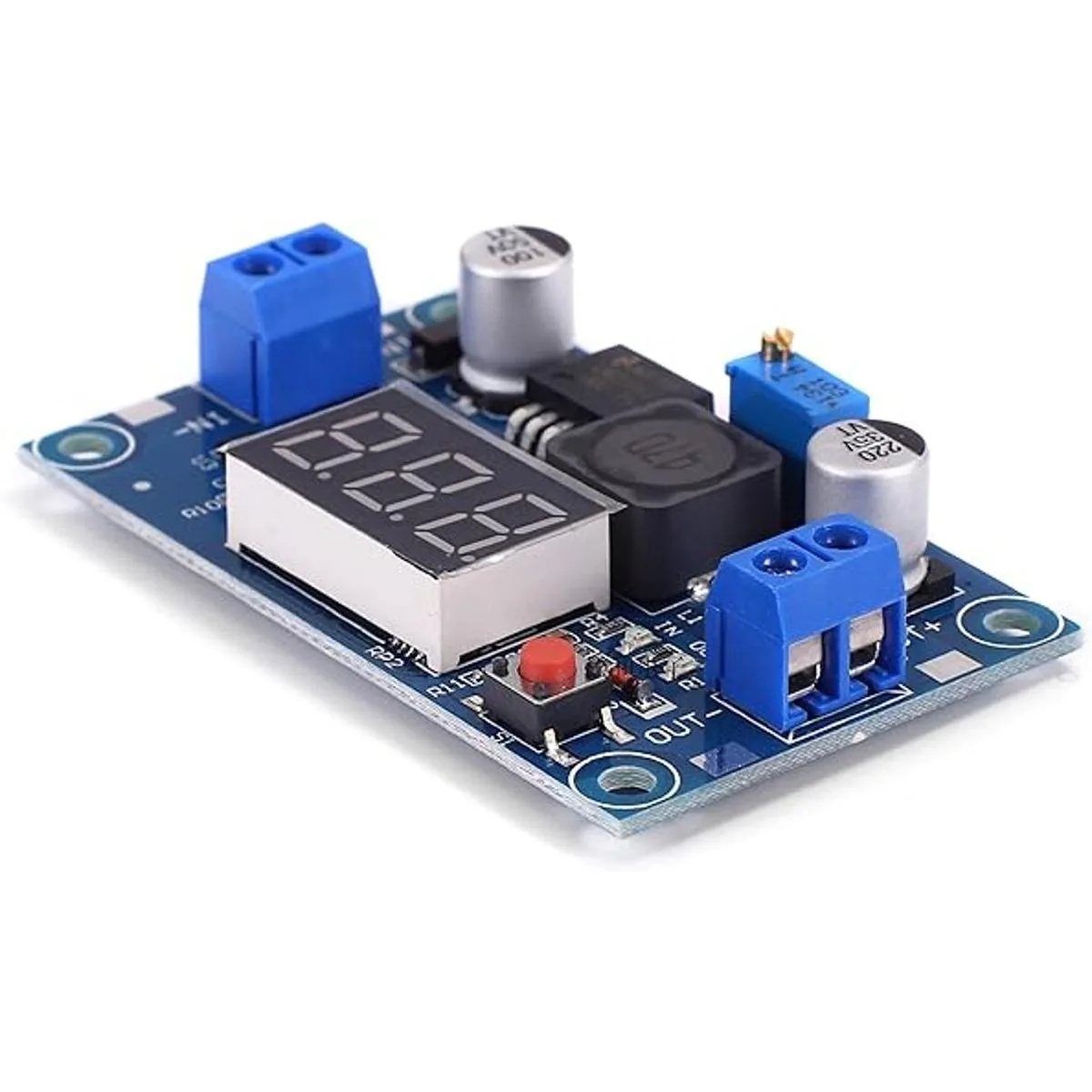

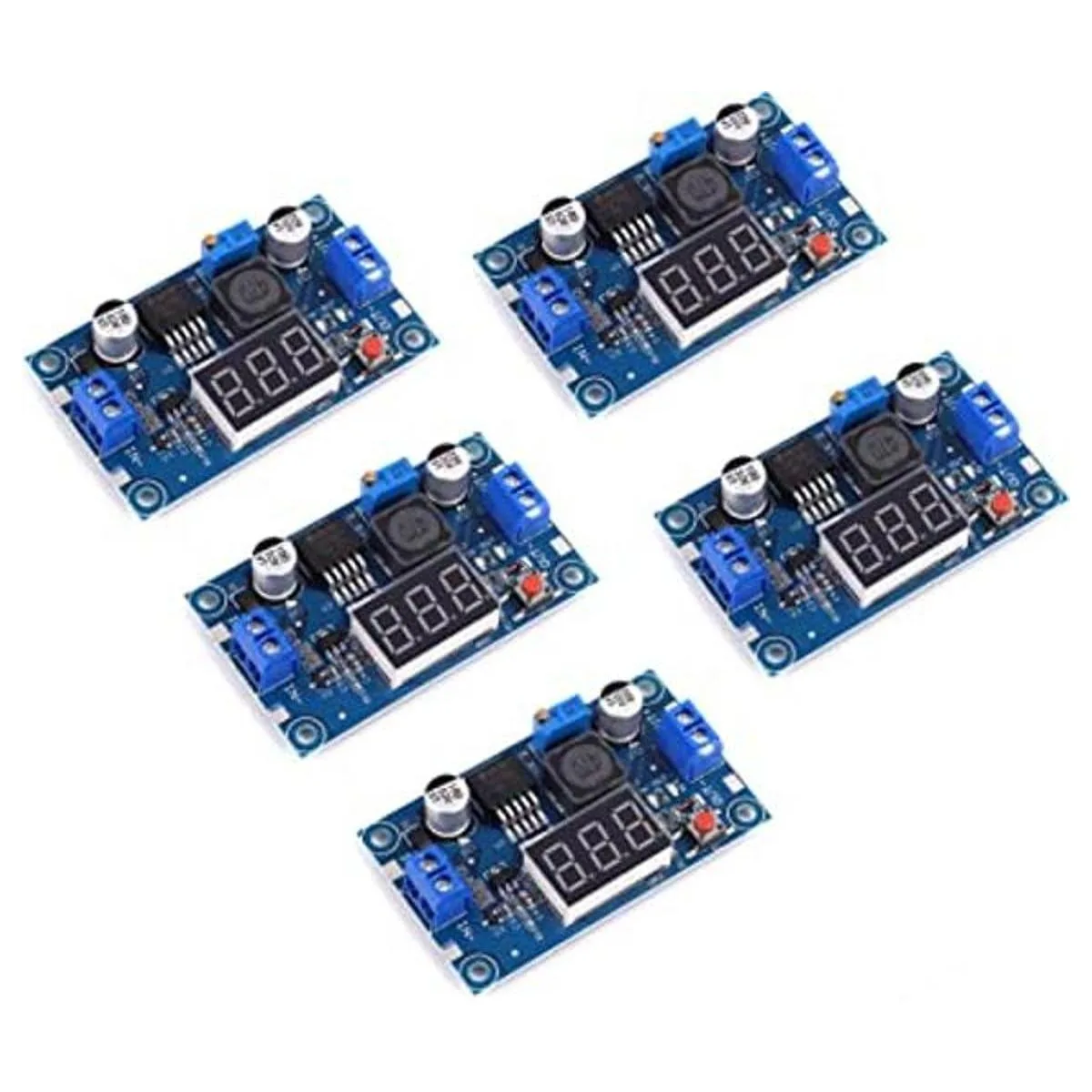

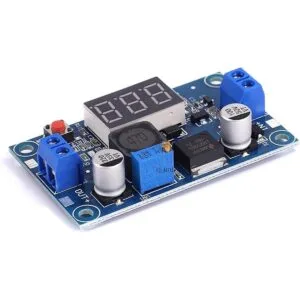

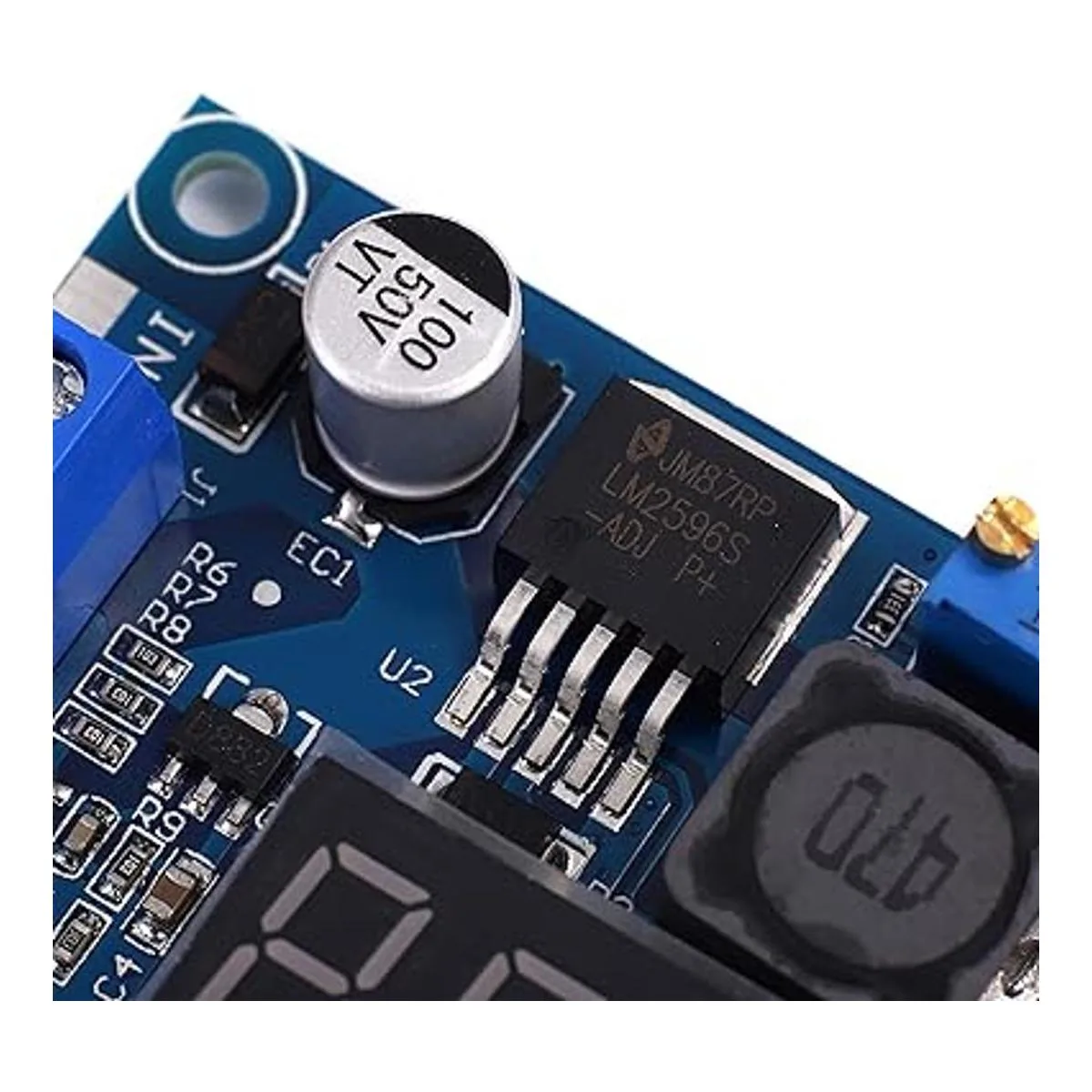

Teyleten Robot LM2596 DC Buck Step Down Power Converter Module DCDC 4.0 40 V a 1.2537 V 2A con voltímetro LED 2 unidades
This module can be applied to fields in the input voltage is higher than the stepdown output voltage, such as batteries, power transformers, DIY adjustable power supply, 24V Car T of the power equipment industry buck, 12V switch 3.3V, 12V switch 5V, 24V switch 5V, 24V switch 12V, 36V 24V turn and so on.
With a voltage meter and voltmeter displays selfcalibration. Uses a more advanced microprocessor voltage voltmeter error 0.05V, Range 0 40V. To ensure accuracy voltmeter, make sure the input voltage of 4.5V and above
Touch of a button to switch the input or output voltage measurements and has a light show which is being measured voltages, and save the settings, even the power off and then on
Input Voltage 4.5 40V. Input voltage must be higher than the output voltage of 1.5v or more
Adjustable output voltage range of 1.25V 37V continuously adjustable. Input voltage must be higher than the output voltage of 1.5V
Output current 3A, recommendations within 2.0A use, high current needed to enhance heat dissipation.
Output power 20W, 15W, please enhance heat dissipation over
High conversion efficiency, on average 88 efficiency and the input and output voltage, current, pressure related
