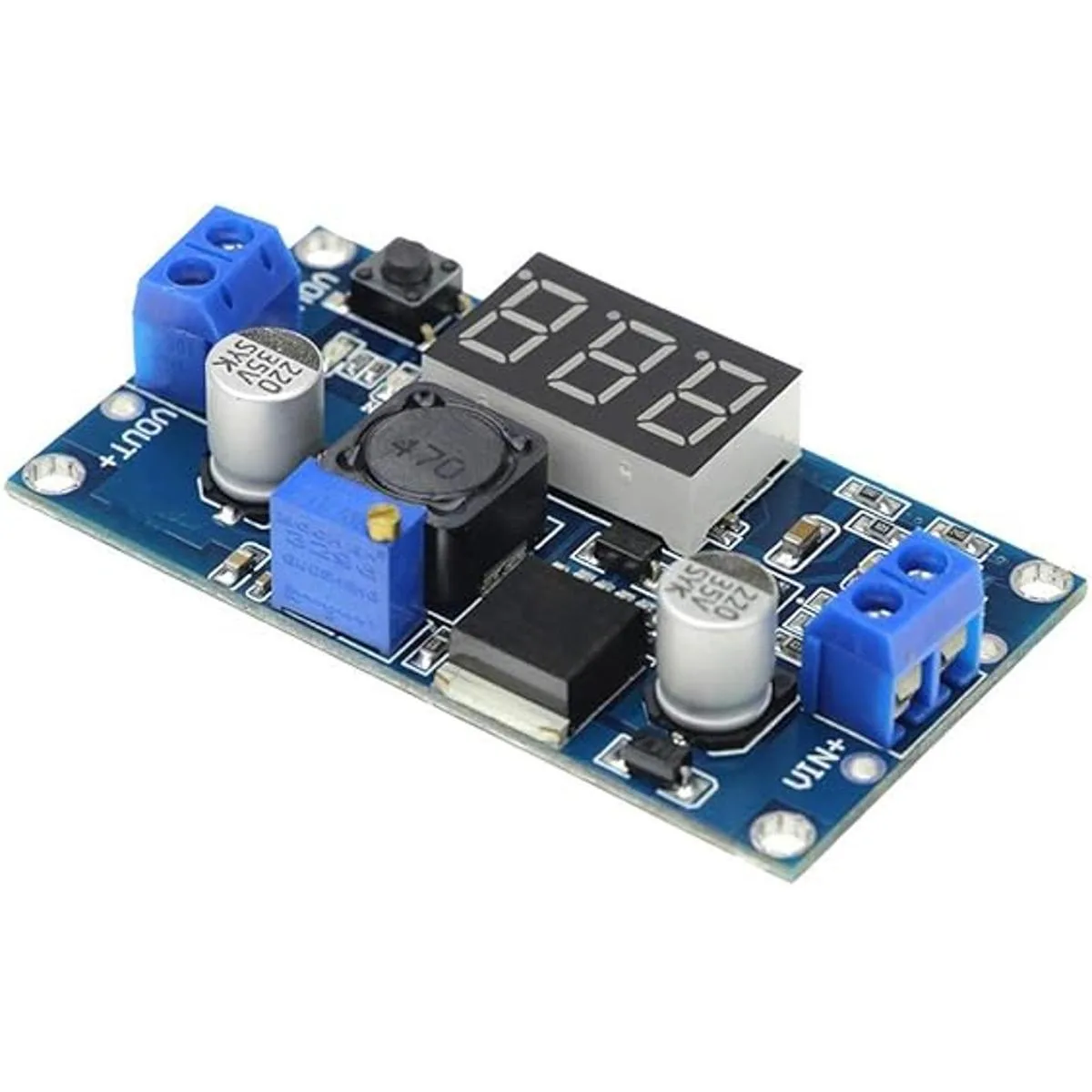

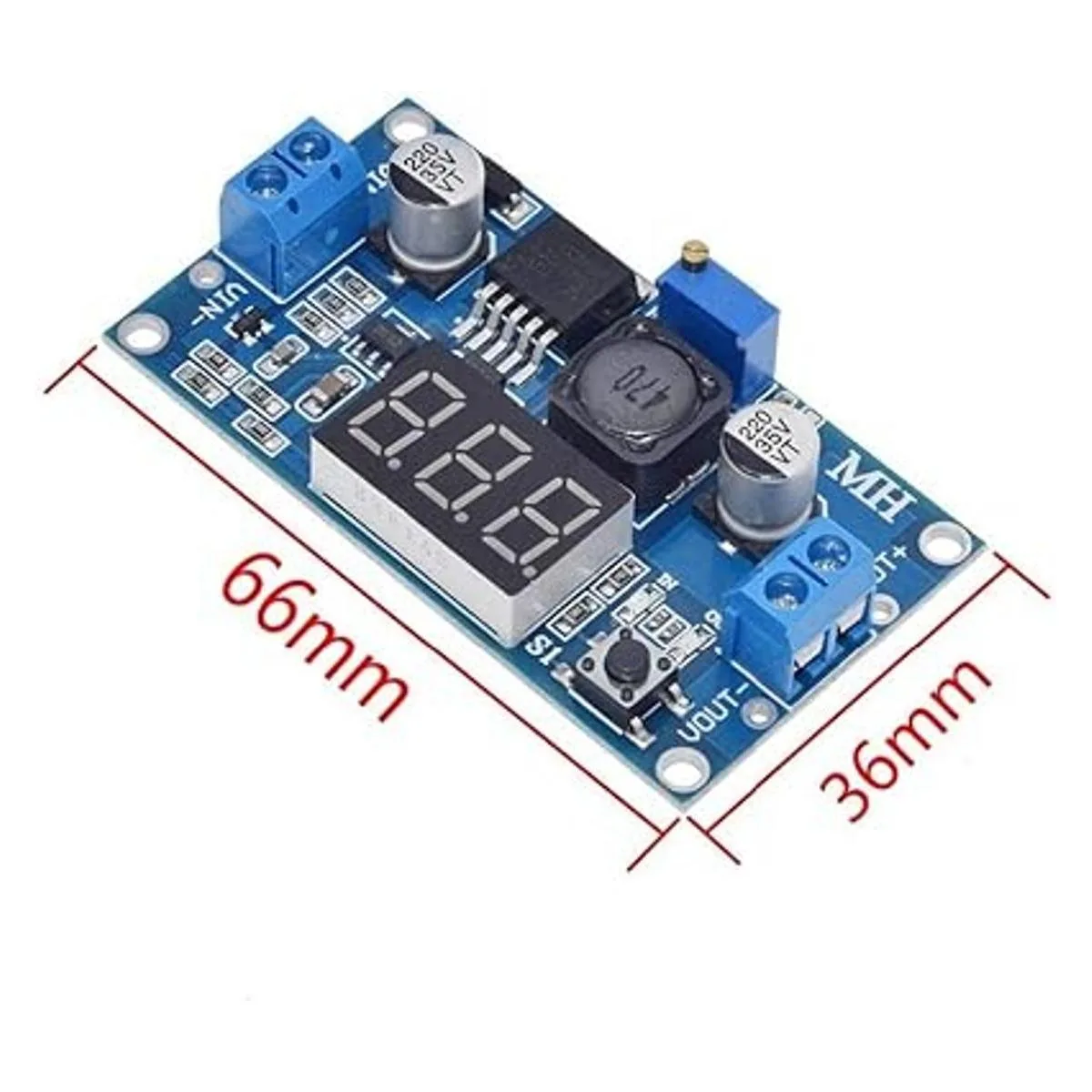

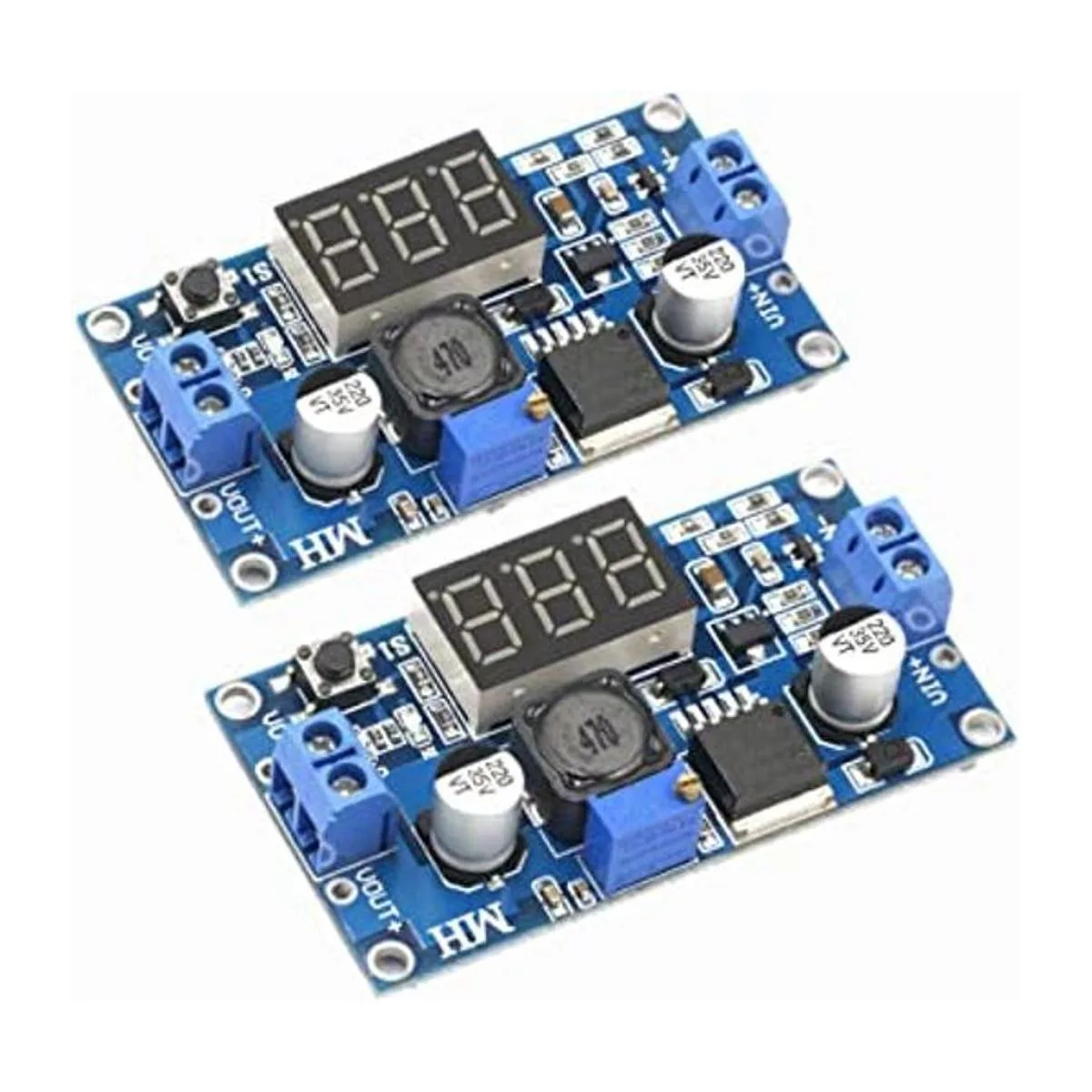

QEBIDUM 2 Pack LM2596 Buck Converter, Switching Regulator Module DC to DC Voltage Step Down Synchronous Adjustable 36V 24V to 12V 5V DIY LM2596S Power Supply Stabilizer Circuit with LED Display
Application: LM2596 Buck Converter can be applied to fields in which the input voltage is higher than the stepdown output voltage, such as batteries, power transformers. Buck module Can be used for many electronic projects.
Product parameters: input voltage is DC 4.040V, the output voltage is 1.25V 37V continuously adjustable, the input voltage must be 1V higher than the output voltage, the output current is 2A normal and stable and 3A max, conversion efficiency 92 highest, output ripple under 30mV, switching frequency 150KHz, operating temperature is 45 C to 85 C.

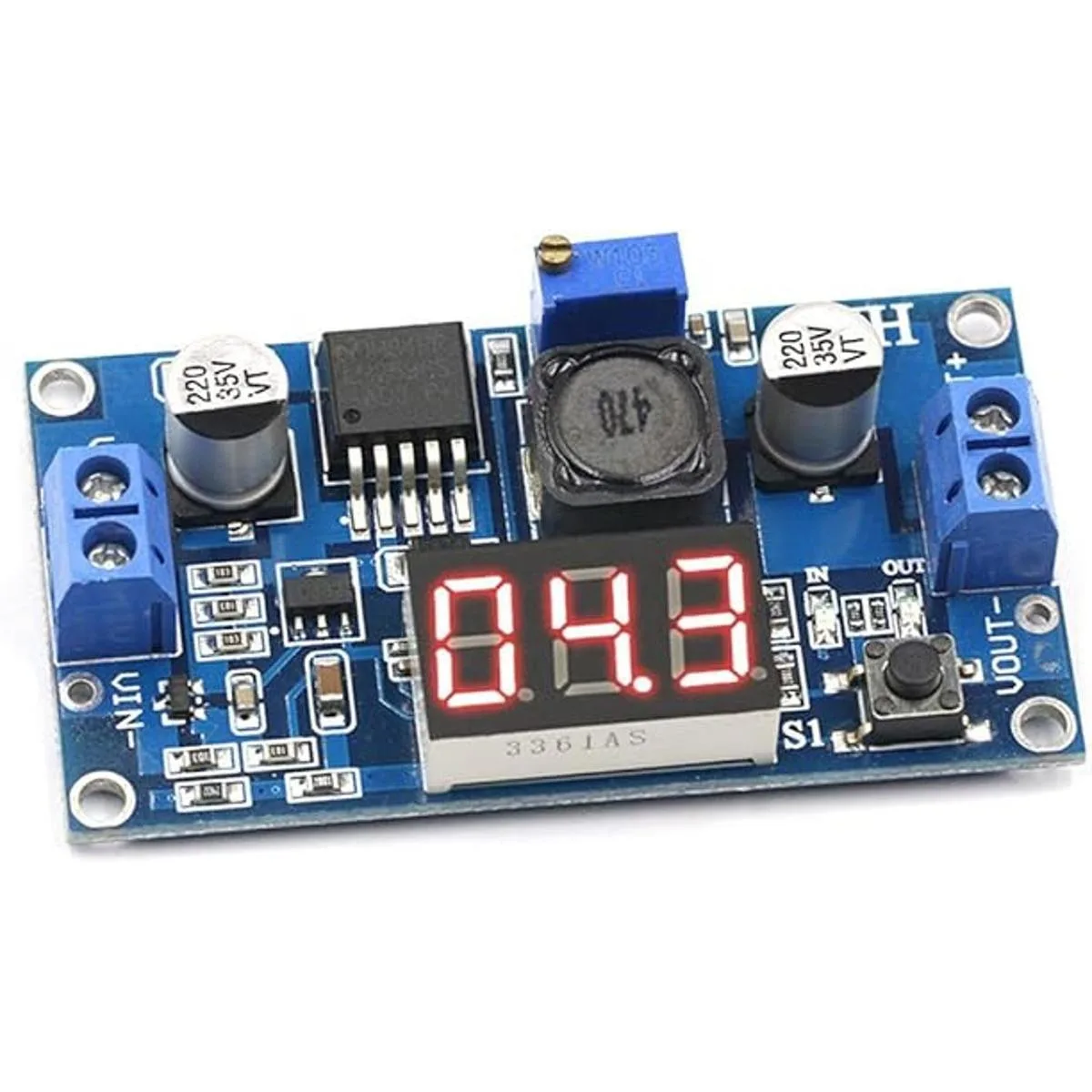

Easy to DIY use: Press the button next to the voltmeter to display input voltage or output voltage. LED D3 lights on when the output voltage is displayed, tap the button, and LED D4 lights when the input voltage is displayed. Press and hold the button to turn off the display.
LM2596S Buck Regulator Updated Version: Using 150KHz internal oscillation frequency, belonging to the second generation switching voltage regulator, low power consumption, high efficiency. With overheat protection and short circuit protection.
Warm Tips: Switchable LED display shows both input voltage and output voltage, eliminates the need to hook up a DMM / multimeter to measure the input and output voltages. If the output current is greater than 2.5A or the output power is greater than 10W, please work with a heat sink for a long time.
