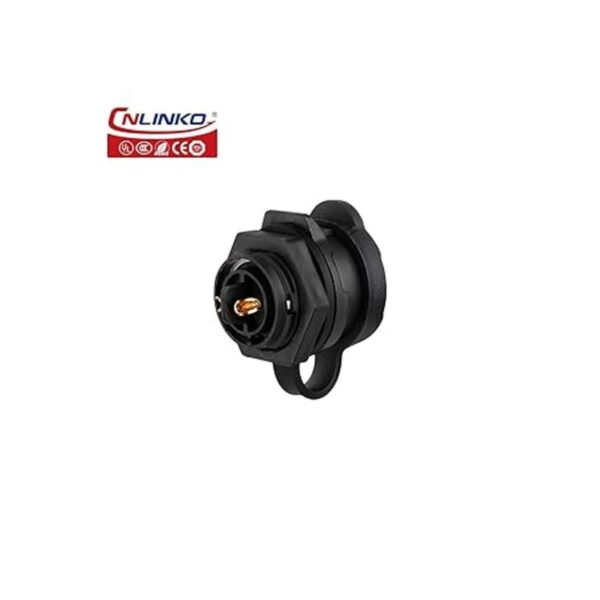

CNLINKO IP67 Circular Panel M16 Plastic 3 Pin Plug and

Descripción

Atención:

Este producto es traído para usted por shownpy, en modalidad de importación desde estados unidos, con un tiempo aproximado de entrega de 15 días.

Información del producto

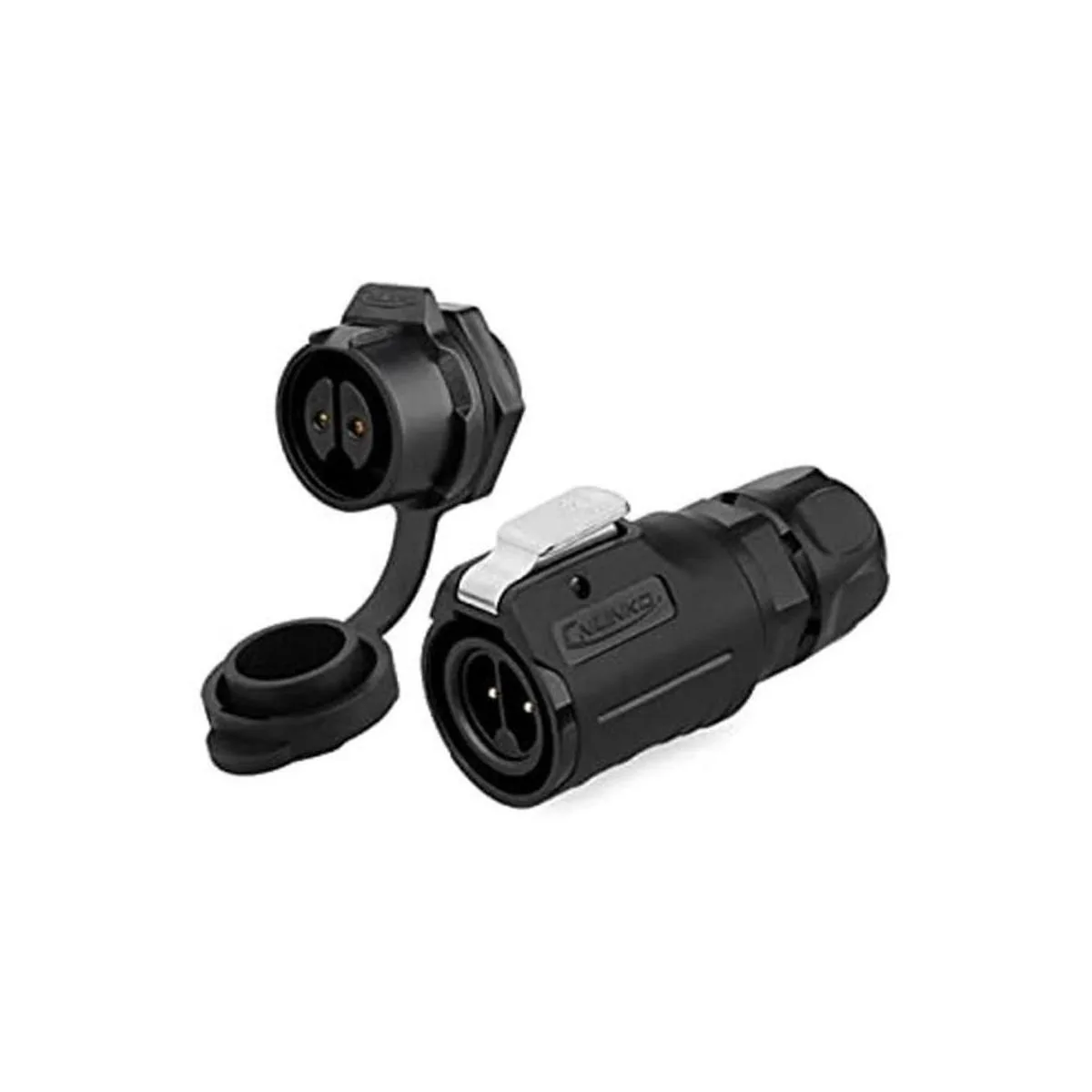

CNLINKO IP67 Circular Panel M16 Plastic 3 Pin Plug and Socket Electrial Waterproof Auto Wire Harness Solder with Cover for Power Equipment DCAC Welding Connector 2 Pin

LP16C02PE02001 LP16J02SX02101 ; Male Plug Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67Mated ;
Standard Cable Specification: 1.01.5mm/1816AWG ; Cable Diameter Range: 3.08.5mm ; Contact Diameter Number: 1.5×2 ; Durability: 500 Mating/Unmating Cycle ; Temperature Rating: 40C 80C ; Assembly Style:Solder ;
Specifications Rated Current: 10A ; Operating Voltage AC.V.rms: 400V ; Withstanding Voltage AC.V,1 Minute: 1500V ; Contact Resistance: 3.0m ; Insulation Resistance: 500M ; Prohibited To Charged Inserted ;
Material Shell Insulated Parts: High Performance Engineer Plastic ; Hard Metal: Zinc AlloyPearl Hard Chromium ; Contact: Copper AlloyGold Plated ; Sealing: Silica Gel ;
Application Stage EquipmentThe Smart Grid ; Medical EquipmentServer ; Solar Energy EquipmentShip Equipment ; Electric Power EquipmentVehicle Equipment ; Communications EquipmentHeavy Machiner ;
