Información del producto

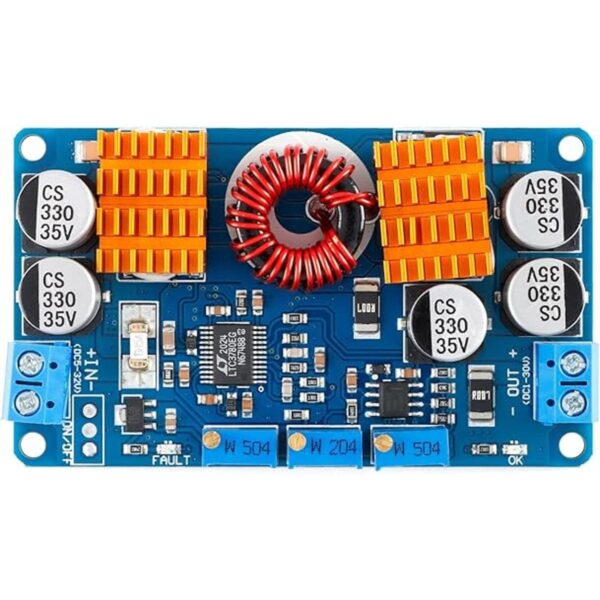

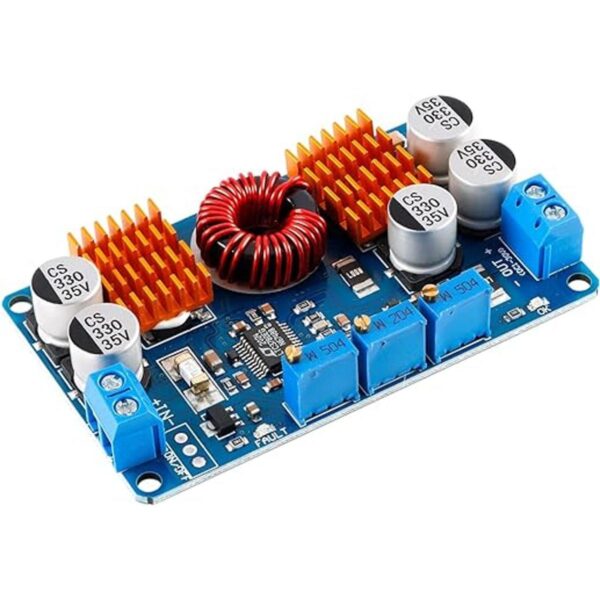

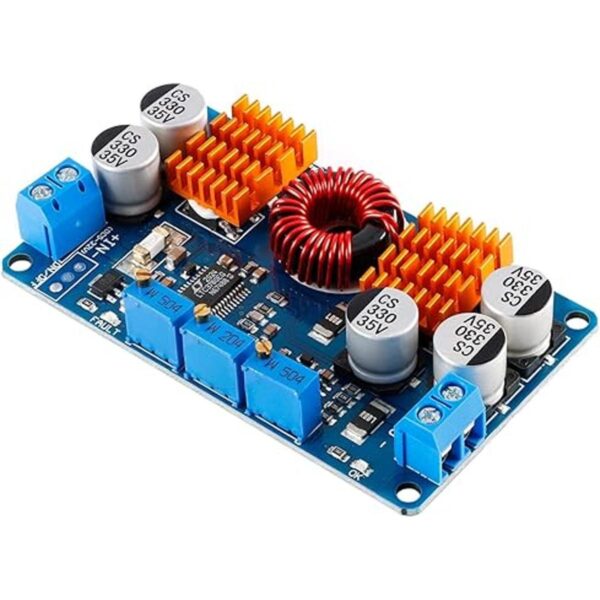

JESSINIE LTC3780 Automatic Boost Power Converter Constant Voltage Constant Current Voltage Converter DCDC Stepup StepDown 5V32V to 1V30V 10A CC CV Solar Charging Module
LTC3780 power converter is a highefficiency stabilized power supply module. When the input voltage is lower than, higher than or equal to the output voltage, the output voltage can be maintained stable.
Input voltage: DC 532V recommended voltage above 10V, output voltage: DC 1V30V continuously adjustable
Output current: 10A MAX within 7A for a long time, output power: 80W for a long time, 130W for a peak value, please strengthen heat dissipation if it exceeds 80W.
Comes with constant current, constant voltage and undervoltage protection, as well as output indication and fault indication functions. The output has overcurrent, overvoltage and short circuit protection.
Suitable for various industrial occasions, such as charging, highpower LED drive, equipment power supply, vehicle power supply, etc.
