Descripción
Atención:
Este producto es traído para usted por shownpy, en modalidad de importación desde estados unidos, con un tiempo aproximado de entrega de 15 días.
Información del producto

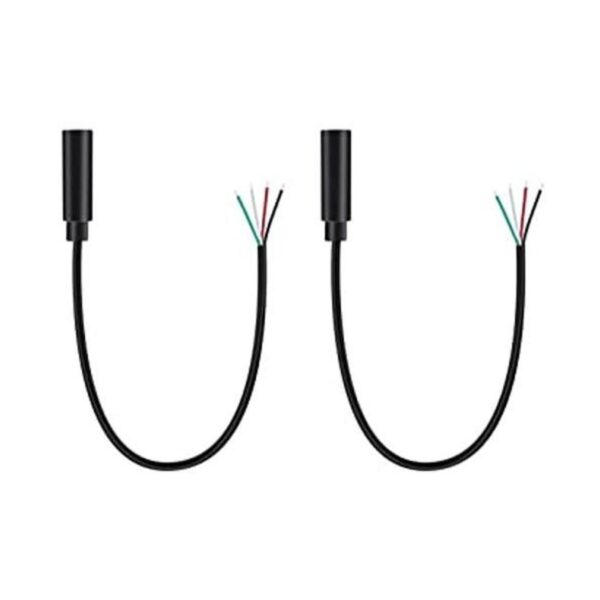

Cable de repuesto hembra de 0.098 in. 4 postes de 2,5 mm.
Perfect replacement 2.5mm female jack connector to bare wire audio cable for wornout or broken headphone headset earphone microphone speakers cable repair.

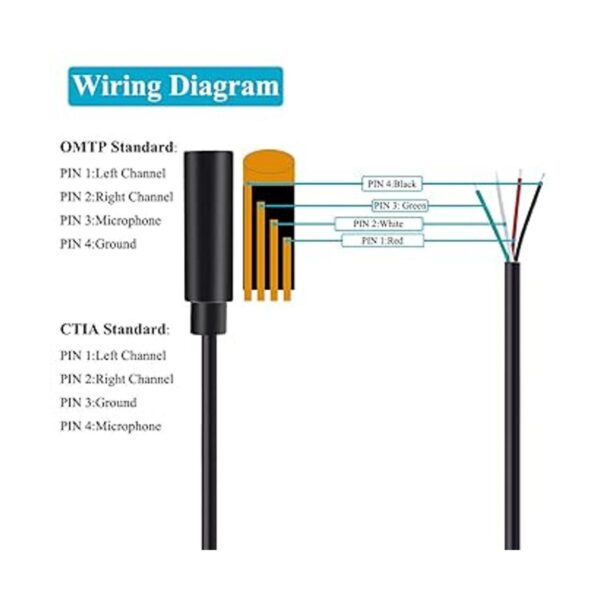

Wiring diagram: PIN 1 red wire; PIN 2 white wire; PIN 3 green wire; PIN 4 black wire. OMTP standard: PIN1 Left channel; PIN 2 Right channel; PIN 3 Microphone; PIN 4 Ground. CTIA standard: PIN1 Left channel; PIN 2 Right channel; PIN 3 Ground; PIN 4 Microphone.
Easy to handle, you really dont have to be a professional to do this. Connect the corresponding bare wires together, wrap and seal the bare wire with insulating tapes.
Package contents: 2Pack 10 inch 2.5mm stereo 4 pole female jack connector replacement audio cable.
